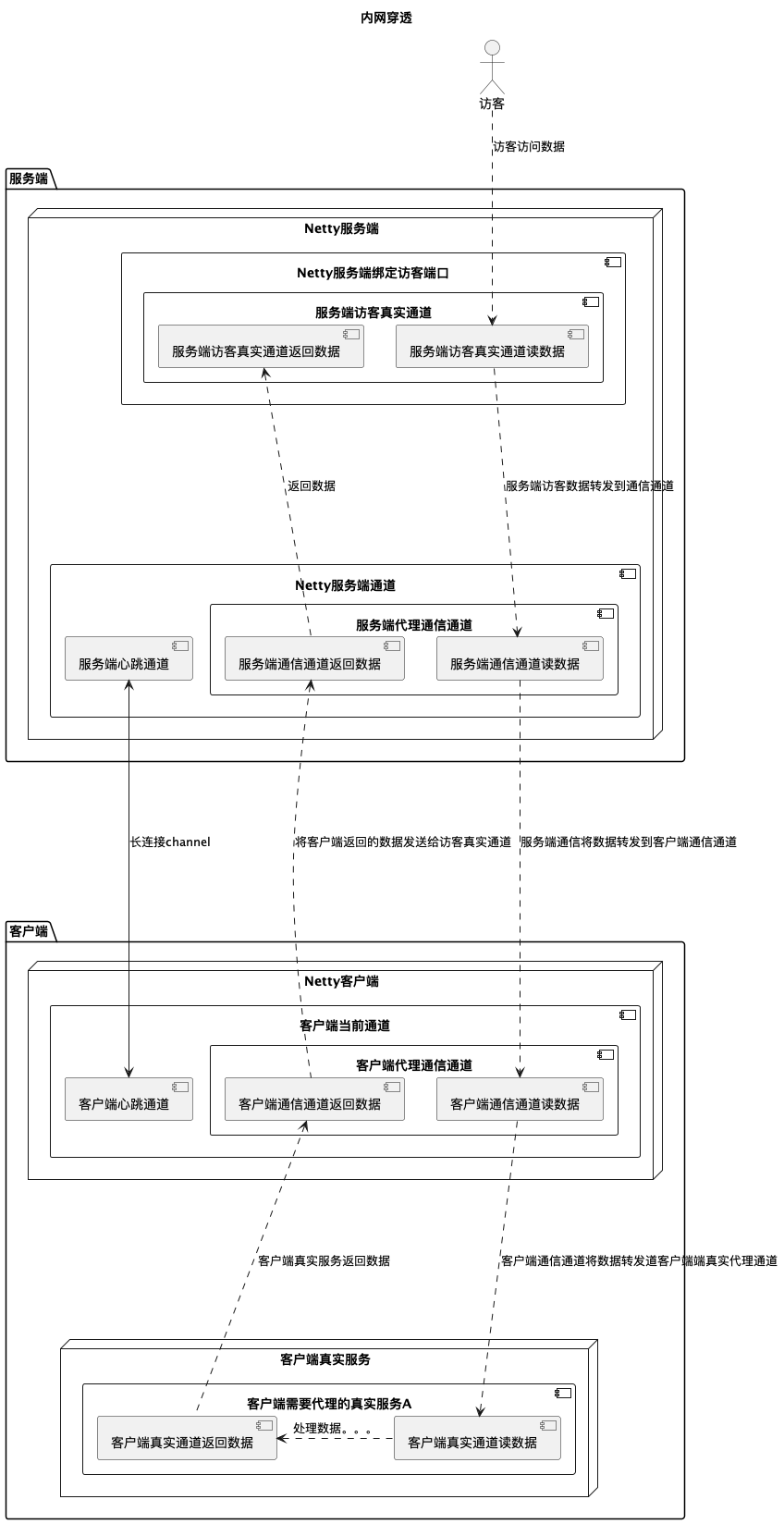

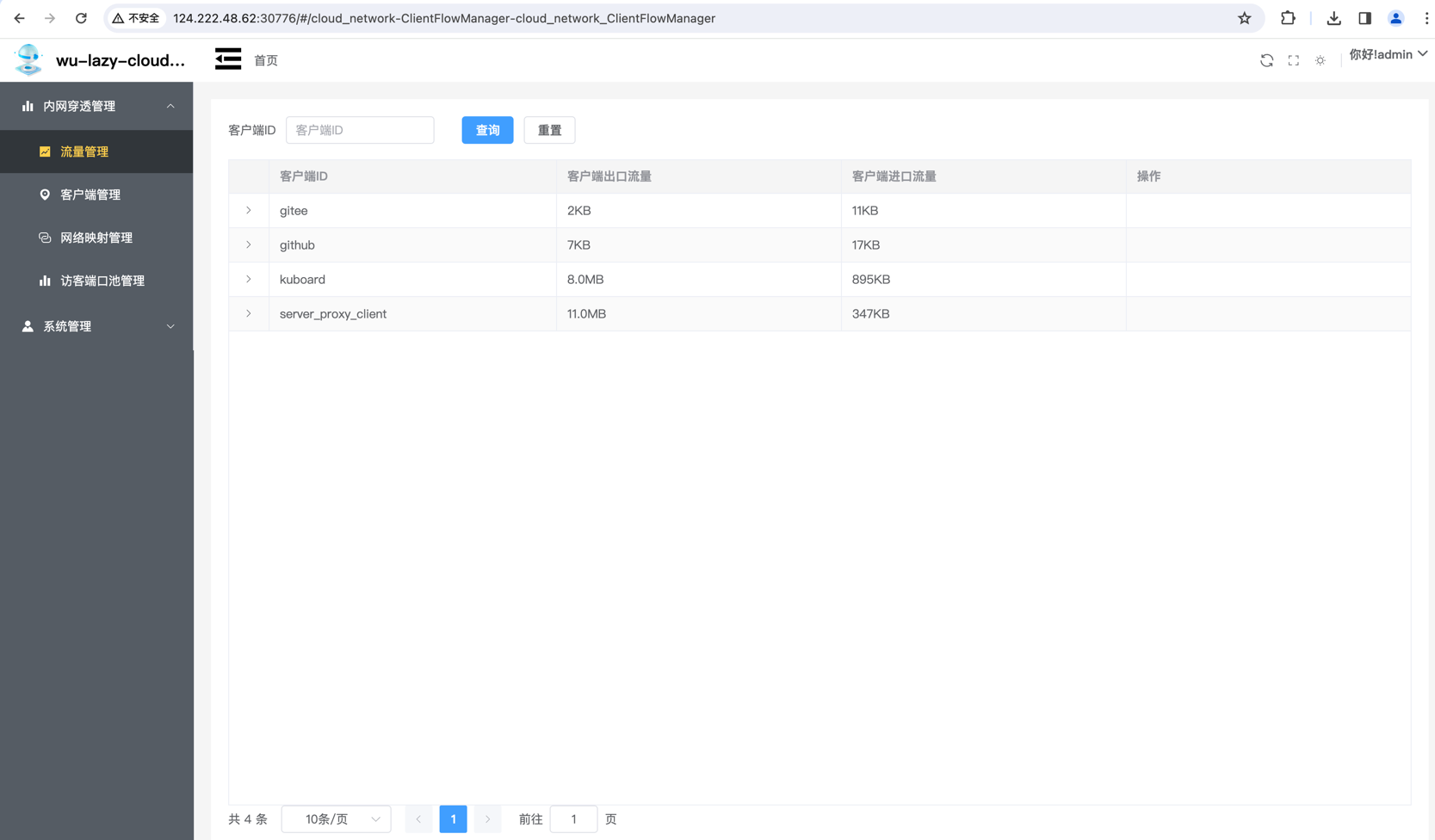

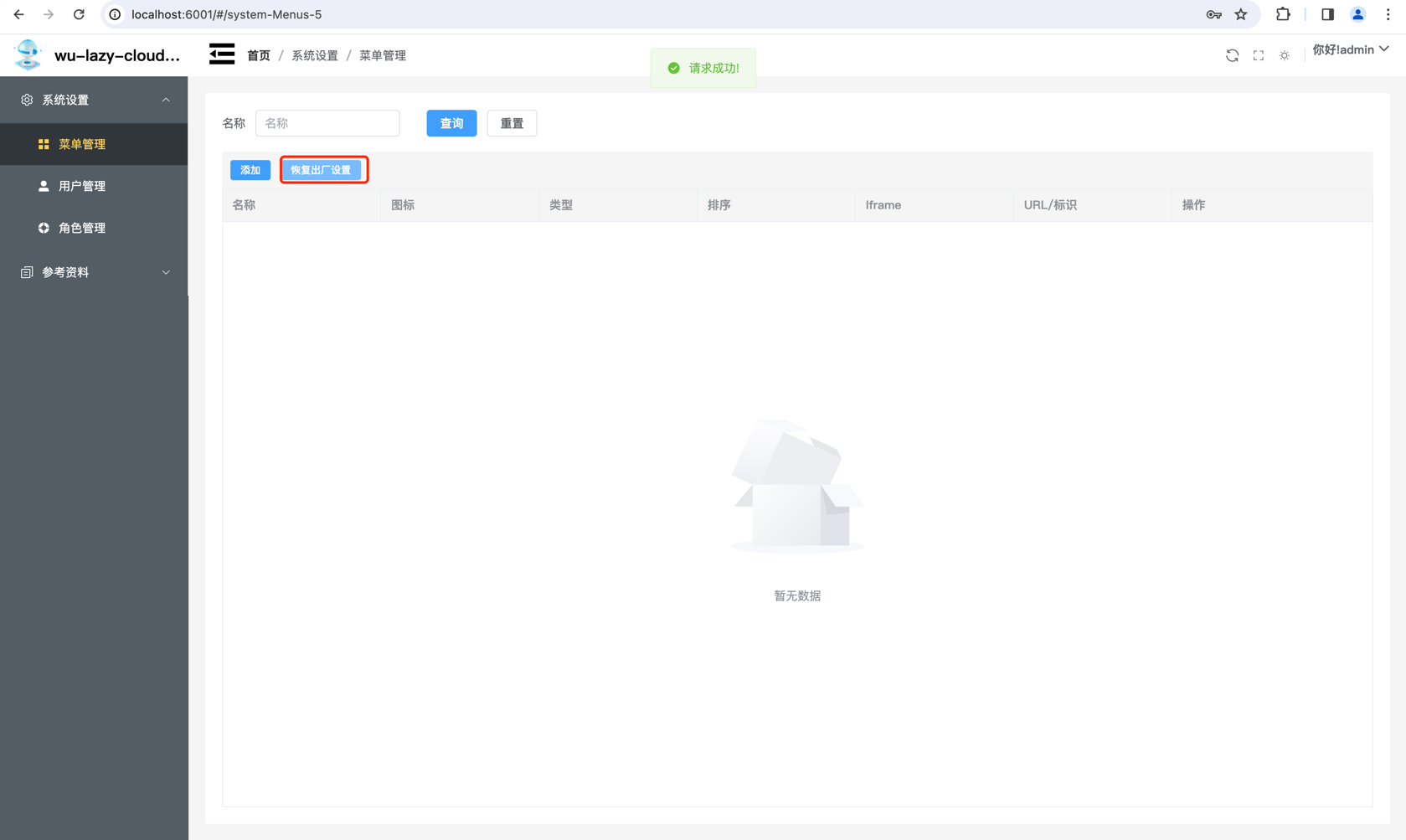

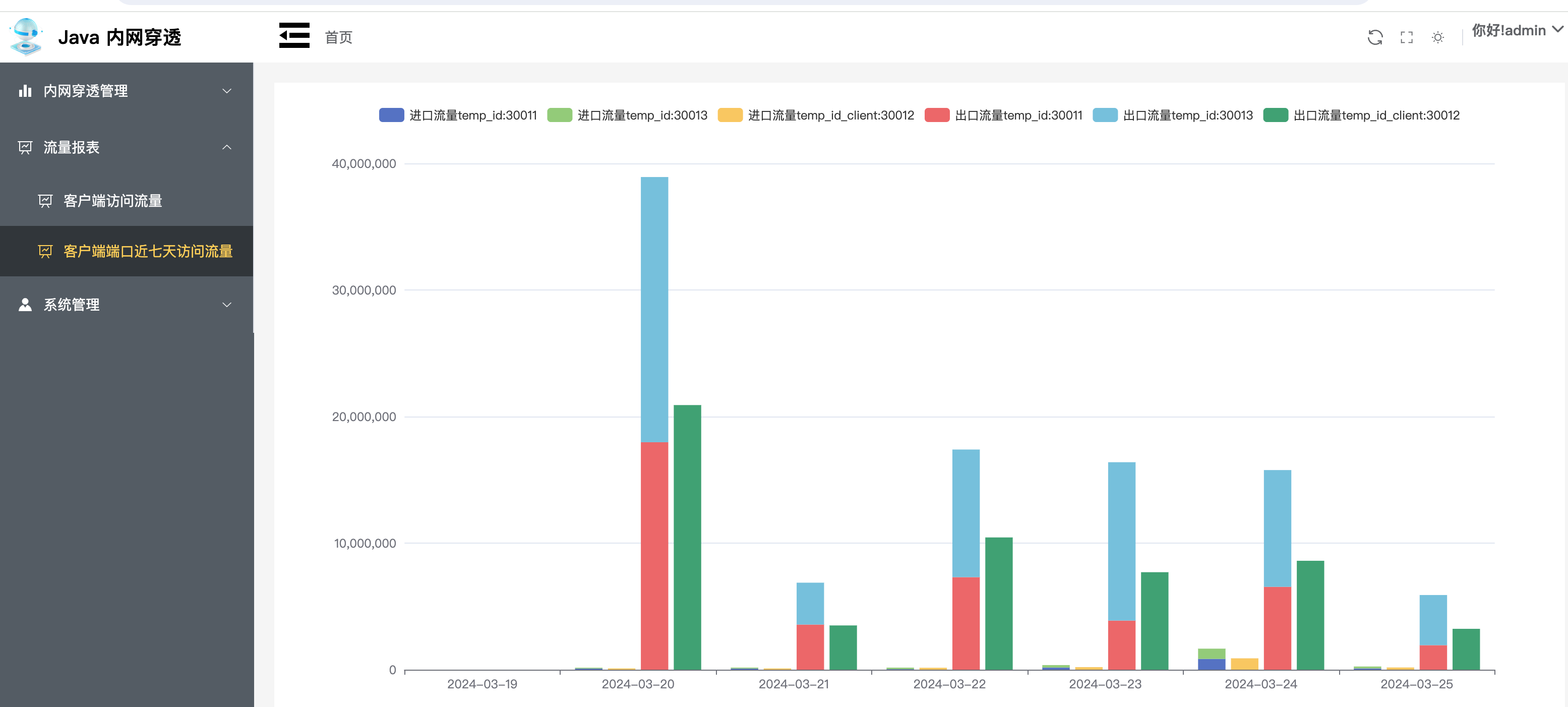

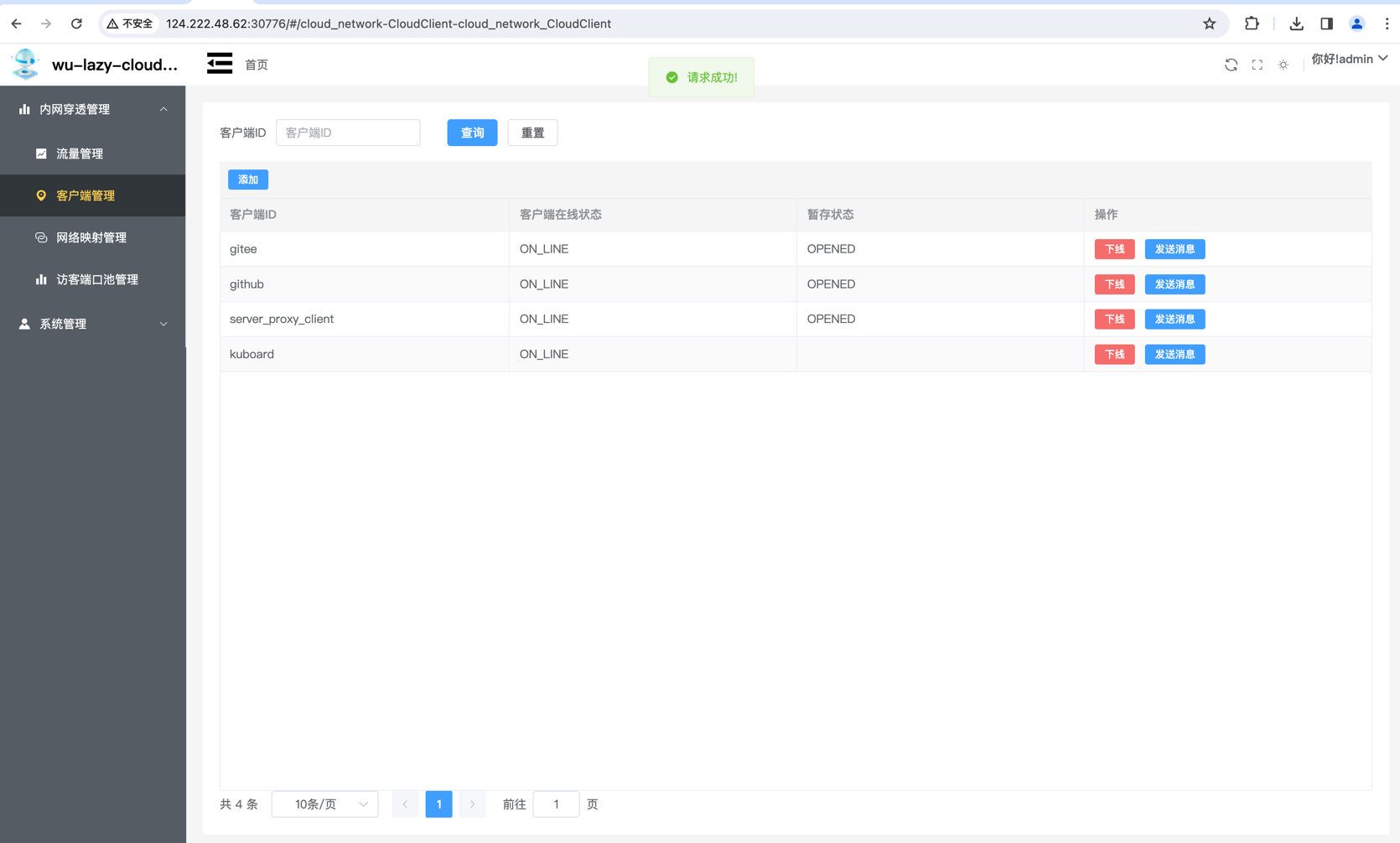

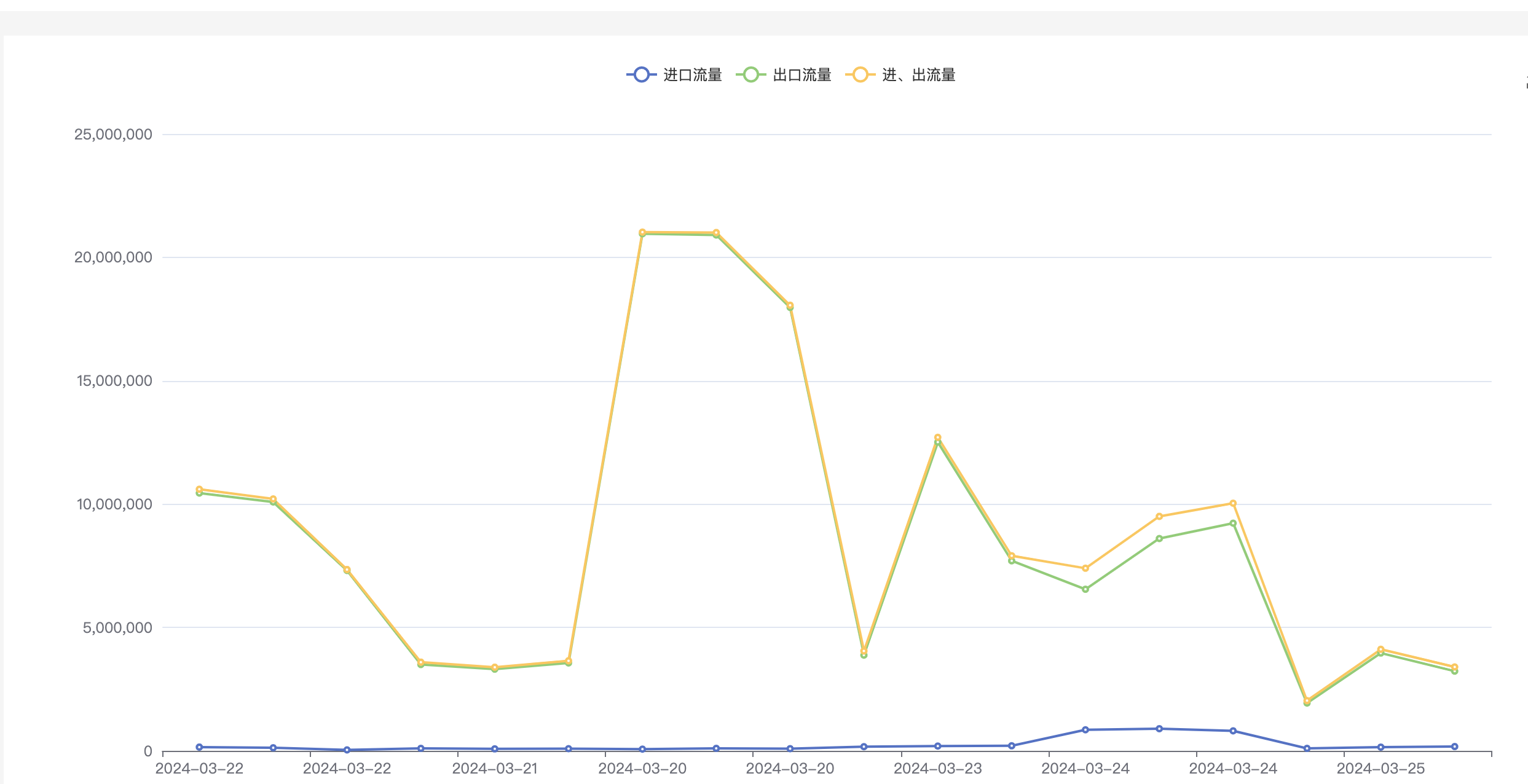

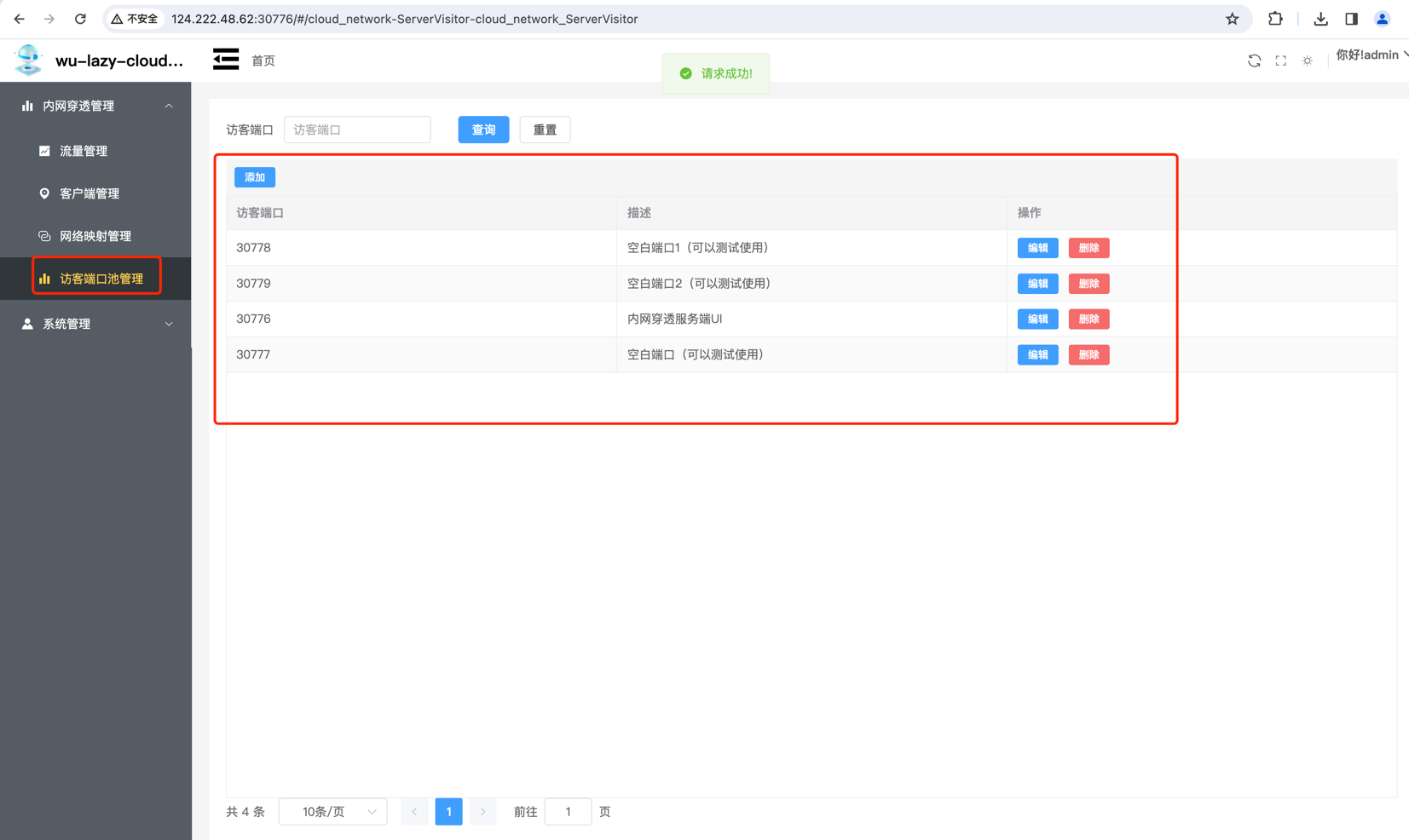

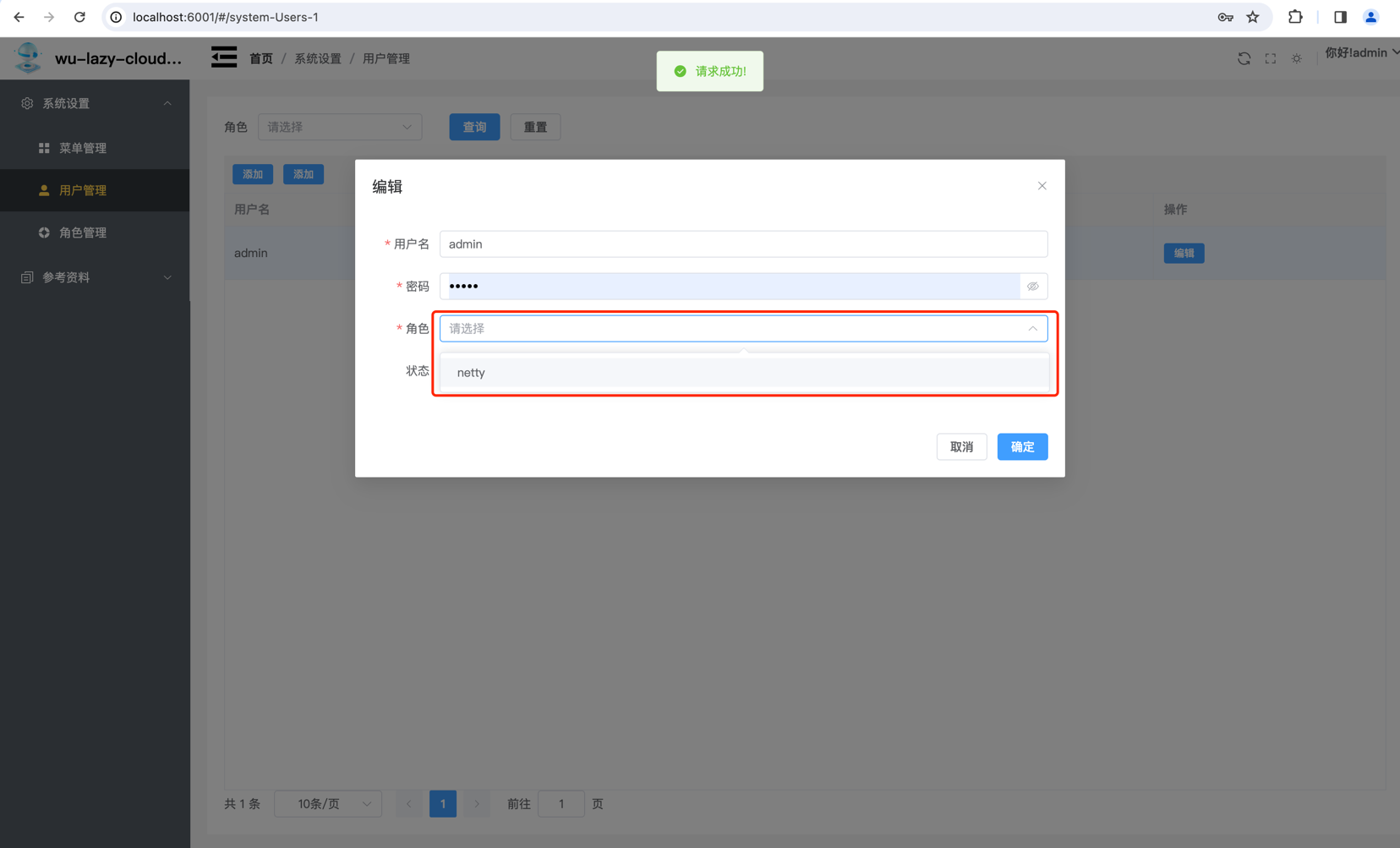

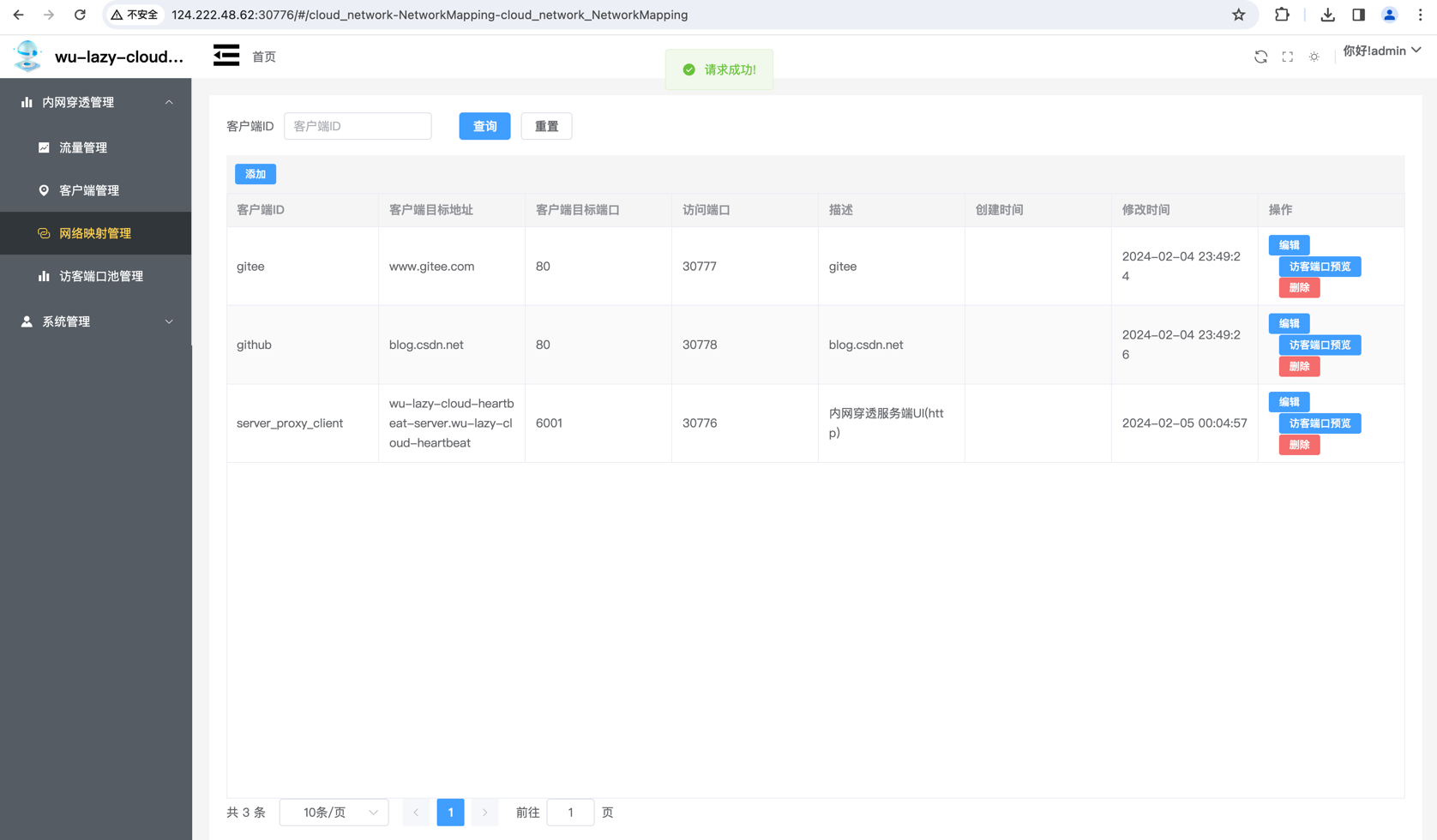

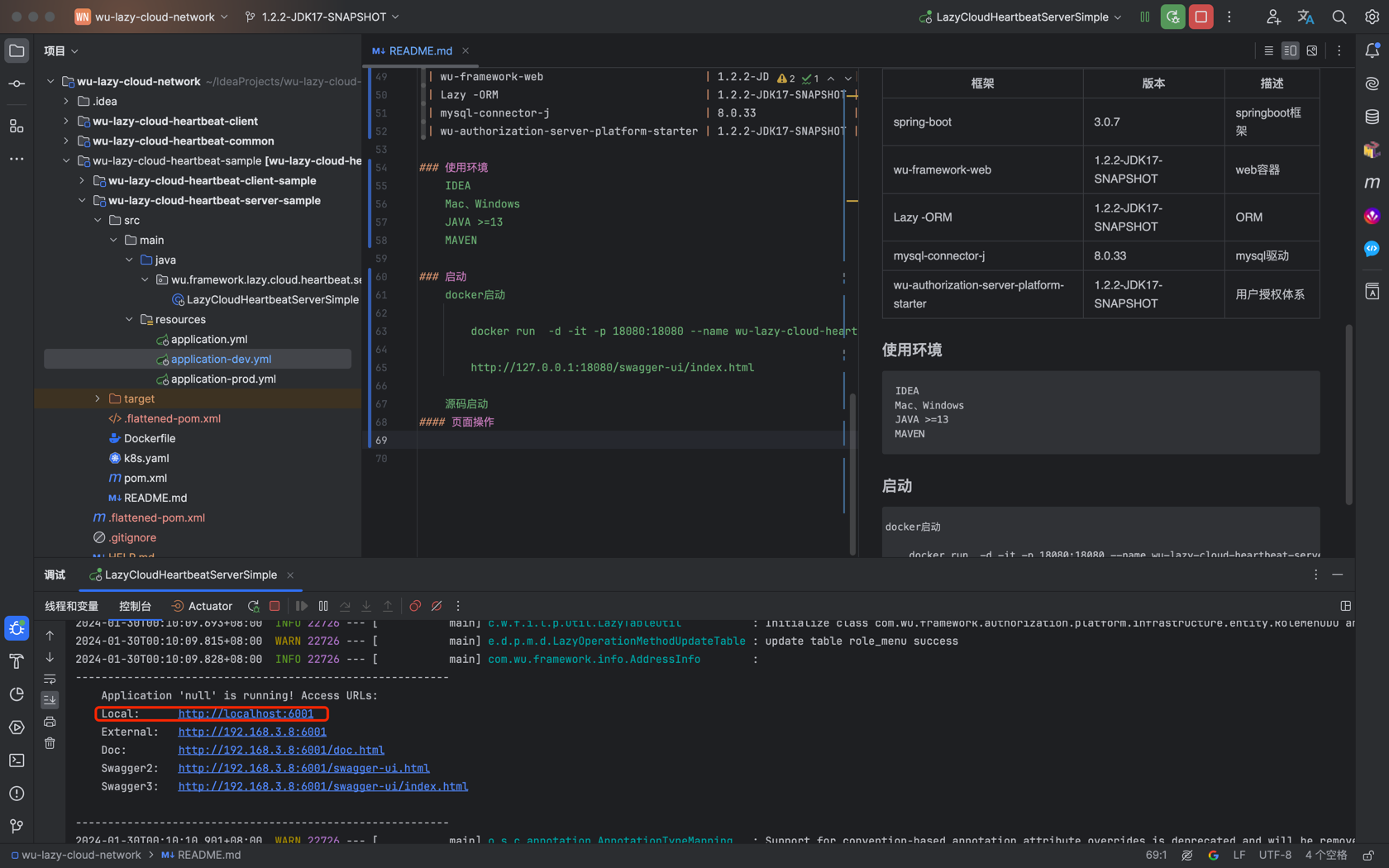

#### 项目介绍 wu-lazy-cloud-network 是一款基于（[wu-framework-parent](https://gitee.com/wujiawei1207537021/wu-framework-parent)）孵化出的项目，内部使用Lazy ORM操作数据库，主要功能是网络穿透，对于没有公网IP的服务进行公网IP映射使用环境JDK17 Spring Boot 3.0.2 #### 项目地址 [Gitee](https://gitee.com/wujiawei1207537021/wu-lazy-cloud-network) [GitHub](https://github.com/wujiawei1207537021/wu-lazy-cloud-network) #### 架构图 ![architecture.png](architecture.png) #### 实现原理 ##### 服务端创建socket服务端绑定本地端口（用于客户端连接） ```java package org.framework.lazy.cloud.network.heartbeat.server.netty.socket; import io.netty.bootstrap.ServerBootstrap; import io.netty.channel.ChannelFuture; import io.netty.channel.ChannelFutureListener; import io.netty.channel.ChannelOption; import io.netty.channel.EventLoopGroup; import io.netty.channel.nio.NioEventLoopGroup; import io.netty.channel.socket.nio.NioServerSocketChannel; import filter.netty.org.framework.lazy.cloud.network.heartbeat.server.NettyServerFilter; public class NettyOnCloudNettyServerSocket { private final EventLoopGroup bossGroup = new NioEventLoopGroup(); private final EventLoopGroup workerGroup = new NioEventLoopGroup(); private final NettyServerFilter nettyServerFilter;// 通道业务处理 private ChannelFuture channelFuture; public NettyOnCloudNettyServerSocket(NettyServerFilter nettyServerFilter) { this.nettyServerFilter = nettyServerFilter; } /** * 启动服务端 * * @throws Exception */ public void startServer(int serverPort) throws Exception { try { ServerBootstrap b = new ServerBootstrap(); b.group(bossGroup, workerGroup).channel(NioServerSocketChannel.class) // 给服务端channel设置属性 .option(ChannelOption.SO_BACKLOG, 128) .childOption(ChannelOption.SO_KEEPALIVE, true) .childHandler(nettyServerFilter) ; channelFuture = b.bind(serverPort).sync(); channelFuture.addListener((ChannelFutureListener) channelFuture -> { // 服务器已启动 }); channelFuture.channel().closeFuture().sync(); } finally { shutdown(); // 服务器已关闭 } } public void shutdown() { if (channelFuture != null) { channelFuture.channel().close().syncUninterruptibly(); } if ((bossGroup != null) && (!bossGroup.isShutdown())) { bossGroup.shutdownGracefully(); } if ((workerGroup != null) && (!workerGroup.isShutdown())) { workerGroup.shutdownGracefully(); } } } ``` ##### 客户端通过class NettyClientSocket 连接服务端 ```java package org.framework.lazy.cloud.network.heartbeat.client.netty.socket; import io.netty.bootstrap.Bootstrap; import io.netty.channel.Channel; import io.netty.channel.ChannelFuture; import io.netty.channel.ChannelFutureListener; import io.netty.channel.EventLoopGroup; import io.netty.channel.nio.NioEventLoopGroup; import io.netty.channel.socket.nio.NioSocketChannel; import lombok.Getter; import lombok.extern.slf4j.Slf4j; import org.framework.lazy.cloud.network.heartbeat.client.application.ClientChangeEvent; import filter.netty.org.framework.lazy.cloud.heartbeat.client.NettyClientFilter; import org.framework.lazy.cloud.network.heartbeat.common.MessageType; import org.framework.lazy.cloud.network.heartbeat.common.NettyProxyMsg; import adapter.org.framework.lazy.cloud.network.heartbeat.common.ChannelTypeAdapter; import advanced.org.framework.lazy.cloud.network.heartbeat.common.HandleChannelTypeAdvanced; import utils.org.framework.lazy.cloud.network.heartbeat.common.ChannelAttributeKeyUtils; import java.util.List; import java.util.concurrent.TimeUnit; /** * 客户端连接服务端 */ @Slf4j public class NettyClientSocket { private static final EventLoopGroup eventLoopGroup = new NioEventLoopGroup(); /** * 服务端host */ private final String inetHost; /** * 服务端端口 */ private final int inetPort; /** * 当前客户端id */ @Getter private final String clientId; /** * nacos配置信息处理应用 */ @Getter private final ClientNettyConfigApplication clientChangeEvent; private final List handleChannelTypeAdvancedList; // 处理服务端发送过来的数据类型 public NettyClientSocket(String inetHost, int inetPort, String clientId, ClientNettyConfigApplication clientChangeEvent, List handleChannelTypeAdvancedList) { this.inetHost = inetHost; this.inetPort = inetPort; this.clientId = clientId; this.clientChangeEvent = clientChangeEvent; this.handleChannelTypeAdvancedList = handleChannelTypeAdvancedList; } public void newConnect2Server() throws InterruptedException { newConnect2Server(inetHost, inetPort, clientId, clientChangeEvent); } protected void newConnect2Server(String inetHost, int inetPort, String clientId, ClientNettyConfigApplication clientChangeEvent) throws InterruptedException { Bootstrap bootstrap = new Bootstrap(); bootstrap.group(eventLoopGroup) .channel(NioSocketChannel.class) .handler(new NettyClientFilter(new ChannelTypeAdapter(handleChannelTypeAdvancedList), this)) ; log.info("连接服务端IP:{},连接服务端端口:{}", inetHost, inetPort); ChannelFuture future = bootstrap.connect(inetHost, inetPort); Channel channel = future.channel(); log.info("使用的客户端ID:" + clientId); future.addListener((ChannelFutureListener) futureListener -> { if (futureListener.isSuccess()) { log.info("连接服务端成功"); // 告诉服务端这条连接是client的连接 NettyProxyMsg nettyMsg = new NettyProxyMsg(); nettyMsg.setType(MessageType.REPORT_CLIENT_CONNECT_SUCCESS); nettyMsg.setClientId(clientId); nettyMsg.setData((clientId).getBytes()); ChannelAttributeKeyUtils.buildClientId(channel, clientId); channel.writeAndFlush(nettyMsg); // 在线 clientChangeEvent.clientOnLine(clientId); } else { log.info("每隔2s重连...."); // 离线 clientChangeEvent.clientOffLine(clientId); futureListener.channel().eventLoop().schedule(() -> { try { newConnect2Server(inetHost, inetPort, clientId, clientChangeEvent); } catch (InterruptedException e) { e.printStackTrace(); } }, 2, TimeUnit.SECONDS); } }); } /** * 关闭连接 */ public void shutdown() { if ((eventLoopGroup != null) && (!eventLoopGroup.isShutdown())) { eventLoopGroup.shutdownGracefully(); } } } ``` ##### 通过客户端与服务端建立的连接进行访客端口绑定上述连接会形成一个channel，我们称之为通道（本文中简单叫**心跳通道**）第一步页面GUI进行新增访客端口而后将访客端口与客户端绑定（如果客户端已经启动，使用页面客户端下线触发第二步）第二步客户端与访客端口绑定后使用**心跳通道** 发送客户端告诉客户端，你帮我绑定你本地真实端口第三步访客访问，访客通过访客端口访问数据，此时访客通道打开截取访客发送的数据，然后将数据发送给客户真实通道，数据返回后再返回给访客通道 ### 功能 1.内网穿透 2.服务端自主下发数据到客户端 3.流量监控 ### 项目结构 | 模块 | 版本 | 描述 | |-----------------------------------------------------------------------------------------------------------------------------------------|----------------------|------------------------------| | [wu-lazy-cloud-network-heartbeat-common](wu-lazy-cloud-network-heartbeat-common) | 1.2.6-JDK17-SNAPSHOT | 内网穿透公共模块（声明接口、枚举、常量、适配器、解析器） | | [wu-lazy-cloud-network-heartbeat-client](wu-lazy-cloud-network-heartbeat-client) | 1.2.6-JDK17-SNAPSHOT | 客户端（支持二次开发） | | [wu-lazy-cloud-network-heartbeat-server](wu-lazy-cloud-network-heartbeat-server) | 1.2.6-JDK17-SNAPSHOT | 服务端（支持二次开发） | | [wu-lazy-cloud-network-ui](wu-lazy-cloud-network-heartbeat-server-ui) | 1.2.6-JDK17-SNAPSHOT | 服务端页面 | | [wu-lazy-cloud-network-heartbeat-client-start](wu-lazy-cloud-network-heartbeat-sample/wu-lazy-cloud-network-heartbeat-client-sample) | 1.2.6-JDK17-SNAPSHOT | 客户端样例 | | [wu-lazy-cloud-network-heartbeat-server-start](wu-lazy-cloud-network-heartbeat-sample/wu-lazy-cloud-network-heartbeat-server-sample) | 1.2.6-JDK17-SNAPSHOT | 服务端样例 | ### 使用技术 | 框架 | 版本 | 描述 | |-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------|----------------------|--------------| | spring-boot | 3.0.7 | springboot框架 | | [wu-framework-web](https://gitee.com/wujiawei1207537021/wu-framework-parent/tree/master/wu-framework-web) | 1.2.6-JDK17-SNAPSHOT | web容器 | | [Lazy -ORM](https://gitee.com/wujiawei1207537021/wu-framework-parent/tree/master/wu-inner-intergration/wu-database-parent) | 1.2.6-JDK17-SNAPSHOT | ORM | | mysql-connector-j | 8.0.33 | mysql驱动 | | [wu-authorization-server-platform-starter](https://gitee.com/wujiawei1207537021/wu-framework-parent/tree/master/wu-smart-platform/wu-authorization-server-platform-starter) | 1.2.6-JDK17-SNAPSHOT | 用户授权体系 | ### 使用环境 IDEA Mac、Windows JAVA >=13 MAVEN ### 启动 docker启动 docker run -d -it -p 18080:18080 --name wu-lazy-cloud-network-heartbeat-server registry.cn-hangzhou.aliyuncs.com/wu-lazy/wu-lazy-cloud-network-heartbeat-server:1.2.6-JDK17-SNAPSHOT http://127.0.0.1:18080/swagger-ui/index.html 源码启动 #### 页面操作启动项目后打开服务端界面 ![img.png](url_info.png) 默认账号密码：admin/admin ![img.png](login.png) 初始化项目 ![img.png](init_menu.png) 添加角色 ![img.png](init_role.png) 为用户授权 ![img.png](authRoe2User.png) 刷新页面 ![img.png](cloud_client.png) 客户端管理（客户端会自动注册） ![img.png](cloud_client.png) 网络映射管理（修改后者新增需要映射的客户端） ![img.png](mapping.png) 访客端口池管理（服务器端需要开放的端口） ![img.png](visitor_port.png) 流量管理（每个客户端使用的流量） ![img.png](flow.png) 流量日统计报表 ![clientPerDayFlow.png](clientPerDayFlow.png) 客户端近七天使用流量 ![clientPortPerDayFlow.png](clientPortPerDayFlow.png)
